EBICS 3.0 BankConnect

This plugin offers seamless and independent integration with your bank's EBICS interface. Automatic reconciliation of SEPA direct debits and prepayments.

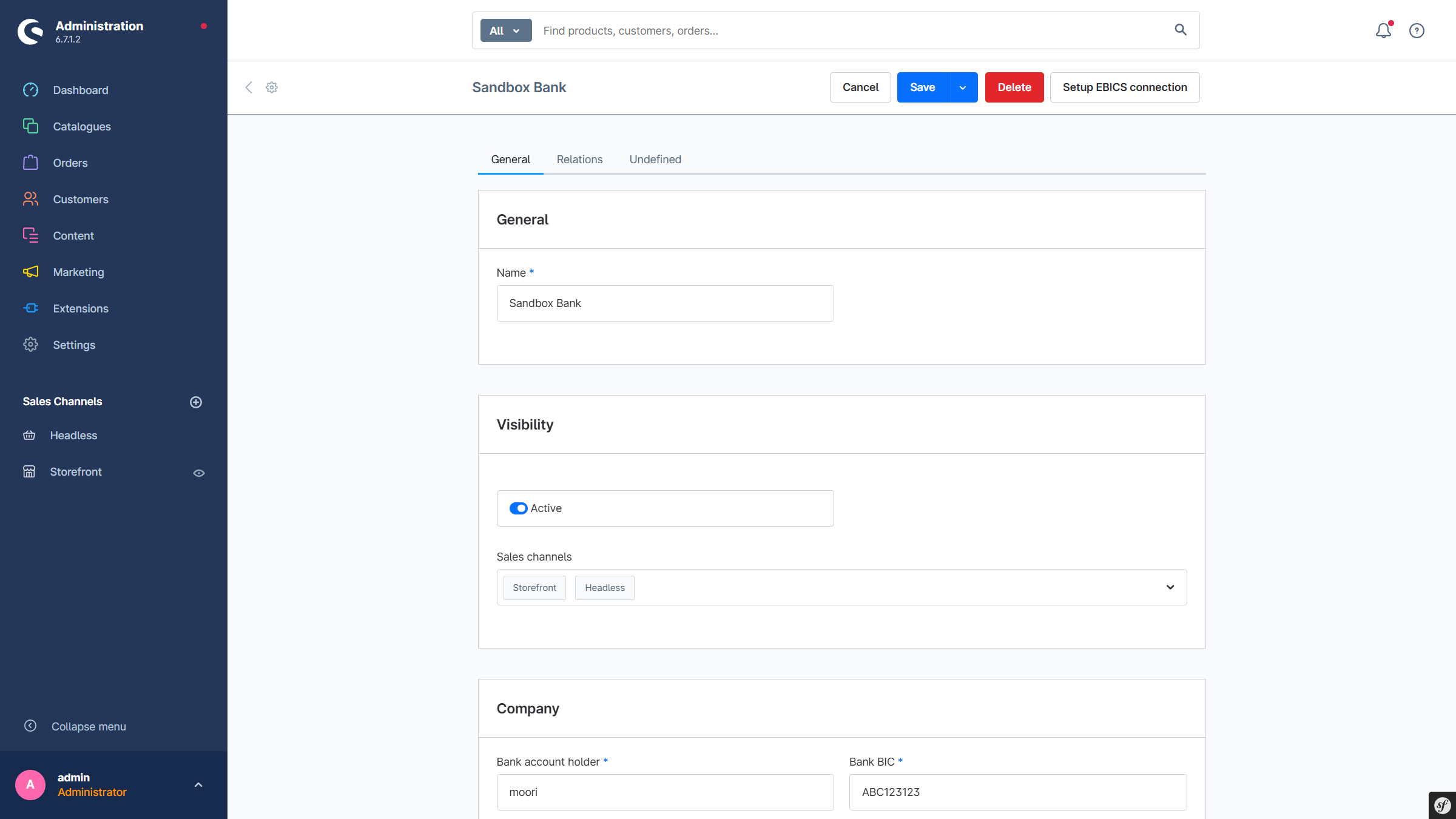

Preview

Purchase the Plugin

The plugin can be purchased from the following stores. If you already have a Shopware account, please always use the link to the Shopware Community Store first, as alternative stores may cause licensing issues. If a plugin is not available in the Shopware Community Store, it is offered exclusively in one of the alternative stores.

Important note: You need the Foundation Plugin, which is available free of charge: moori Foundation

Initial Setup

Checklist

Request EBICS 3.0 from your bank

The following business transactions are required:

Setup and monthly fees may apply.

  1. Minimum requirements:

    • Intraday prebooked items (camt.052) — ServiceName: STM, Scope: DE, MsgName: camt.052, Container: ZIP
    • End-of-day statements (camt.053) — ServiceName: EOP, Scope: DE, MsgName: camt.053, Container: ZIP

  2. Optional: Direct debit (Creditor ID from the Bundesbank can be applied for later)

    • SEPA Direct Debit (Core) — ServiceName: SDD, ServiceOption: COR, MsgName: pain.008

  3. Optional: Credit transfer (for refunds)

    • SEPA Credit Transfer — ServiceName: SCT, MsgName: pain.001

❗ Recommendation: Option 3 poses a security risk if the EBICS account does not use dual control (VEU). If not needed, explicitly exclude it!

Apply for a Creditor ID

The Creditor ID is essential for SEPA direct debits. The application process is fully online. Processing usually takes only a few business days.

http://www.glaeubiger-id.bundesbank.de

Bank Setup

  1. Open the Bank Settings
    Navigate to Settings → EBICS Banks.

  2. Set a Keyring Password
    Before you configure your bank, you must define a global password to encrypt your EBICS key files:

    • Click Create or Change Keyring Password in the top-right corner
    • Choose a six-digit password

  3. Add a Bank

    • Click Add in the top-right corner
    • Fill in all required fields (Customer ID, User/Participant ID, EBICS server URL, etc.)

  4. Initialize the EBICS Connection
    The initialization process consists of several steps:

    1. Create Keyring File

      • A secure keyring file is generated and encrypted with your password.

    2. Send INI & HIA Requests

      • Your public keys are sent to the bank.
      • If you receive an error here: Check that your EBICS access has been activated by the bank and that your Customer ID & User ID are correct.

    3. Generate INI Letter

      • The plugin creates a PDF containing the key fingerprints.
      • This document must be signed by an authorized person and sent to the bank.
      • Note: For test accounts, this step is often not required.

    4. Send HPB Request

      • The bank’s public keys are retrieved and stored in the keyring file.
      • Once this succeeds, the connection to the bank is fully active.

💡 Tip: The plugin always displays the last error message returned by the bank.
When no error message is shown anymore, your connection has been successfully set up.

  1. Optional Fields
    • Enter your creditor identifier if you intend to use SEPA direct debits
    • Assign all relevant payment methods (e.g. Prepayment, Invoice, SEPA Direct Debit)

Plugin Settings

  • Explicitly assign payment methods to their intended purpose.
  • Make sure no payment method is assigned twice.

Technical Notes

The plugin uses Shopware’s standard order statuses:

  • open
  • authorized
  • paid
  • refunded
  • chargeback
  • failed

❗ Custom statuses are not supported.

Additional notes:

  • Available EBICS order types depend on your bank.
    If an order type is not supported, you will receive an appropriate error message.
  • Direct release for payouts (refunds) is only possible with a single signature.
    Four-eyes approval requires an external EBICS client (e.g. SFirm).
  • SEPA direct debit mandates can only be created if a valid creditor identifier is stored in the bank settings.
    Otherwise, such orders will be aborted.
  • Logs: All processes are logged under var/logs/moorl_ebics_*.log.
